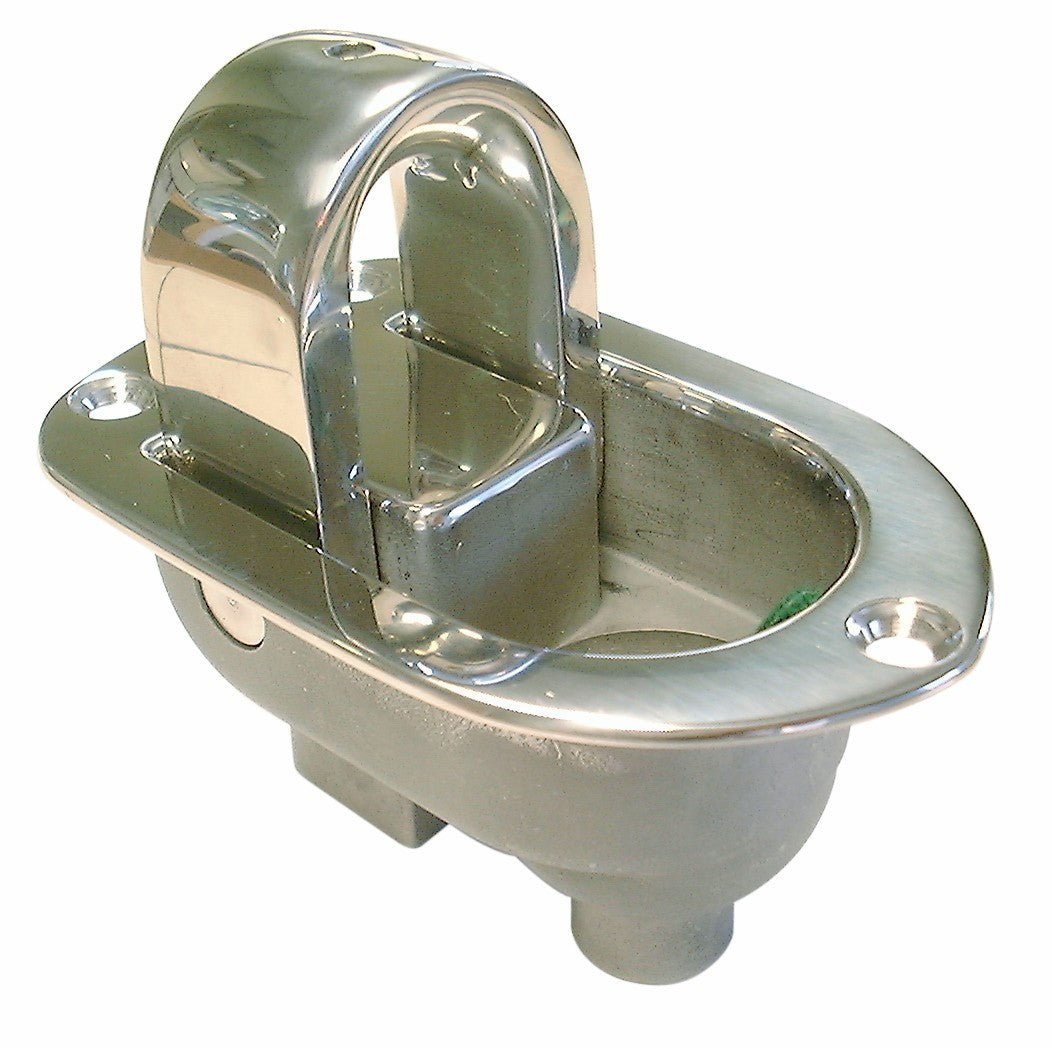

Oval Lifting Eye
FEATURES
- Part #201-LE
- Small compact unit.
- Unit can be drained or sealed water tight.
- Hub pivots two ways to overcome a slight misalignment at installation.
- All stainless steel parts; eye and base are 316, lifting hardware is 304.
- The sling is a solid casting for increased strength.
- Parts may be purchased seperately.
- Requires less clearance under deck than our lifting cleats..
- Fastens to deck with four #10 screws.
INDEPENDENT LAB TEST RESULTS
The maximum working load is 4,000 pounds in the direction of the axis of the threaded rod shank only.

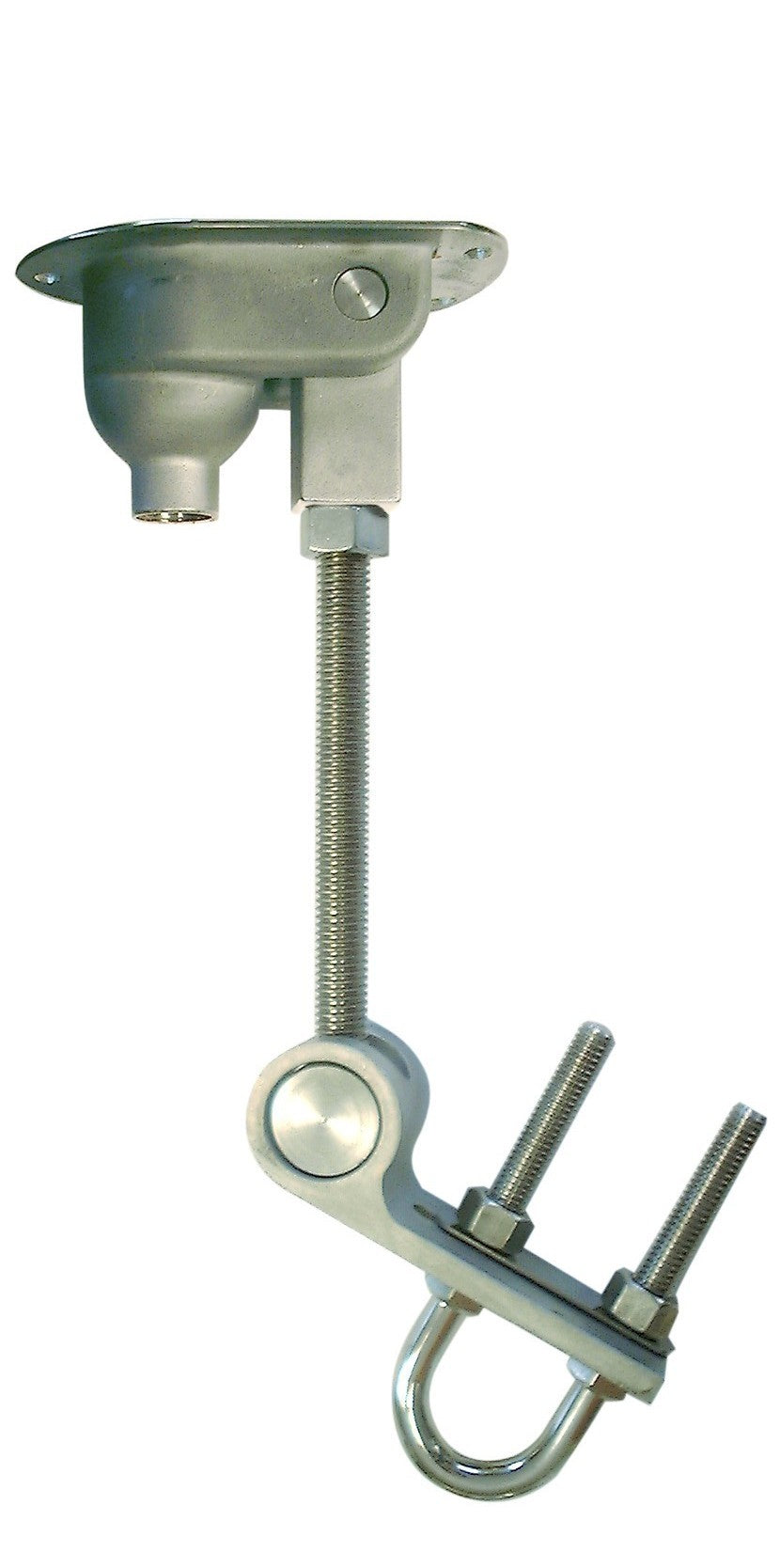

DRAWING OF OVAL LIFTING EYE

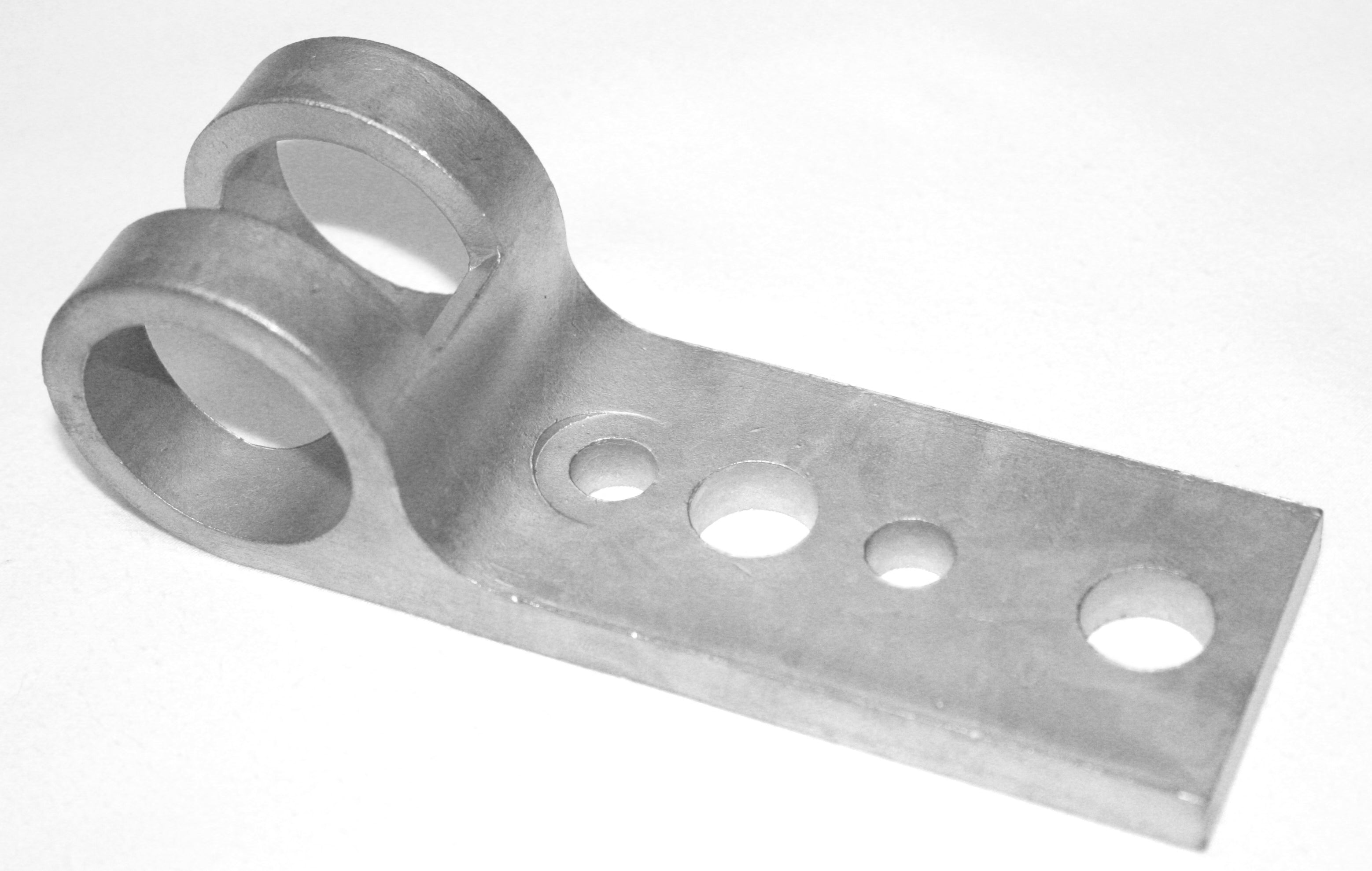

DRAWING OF SLING

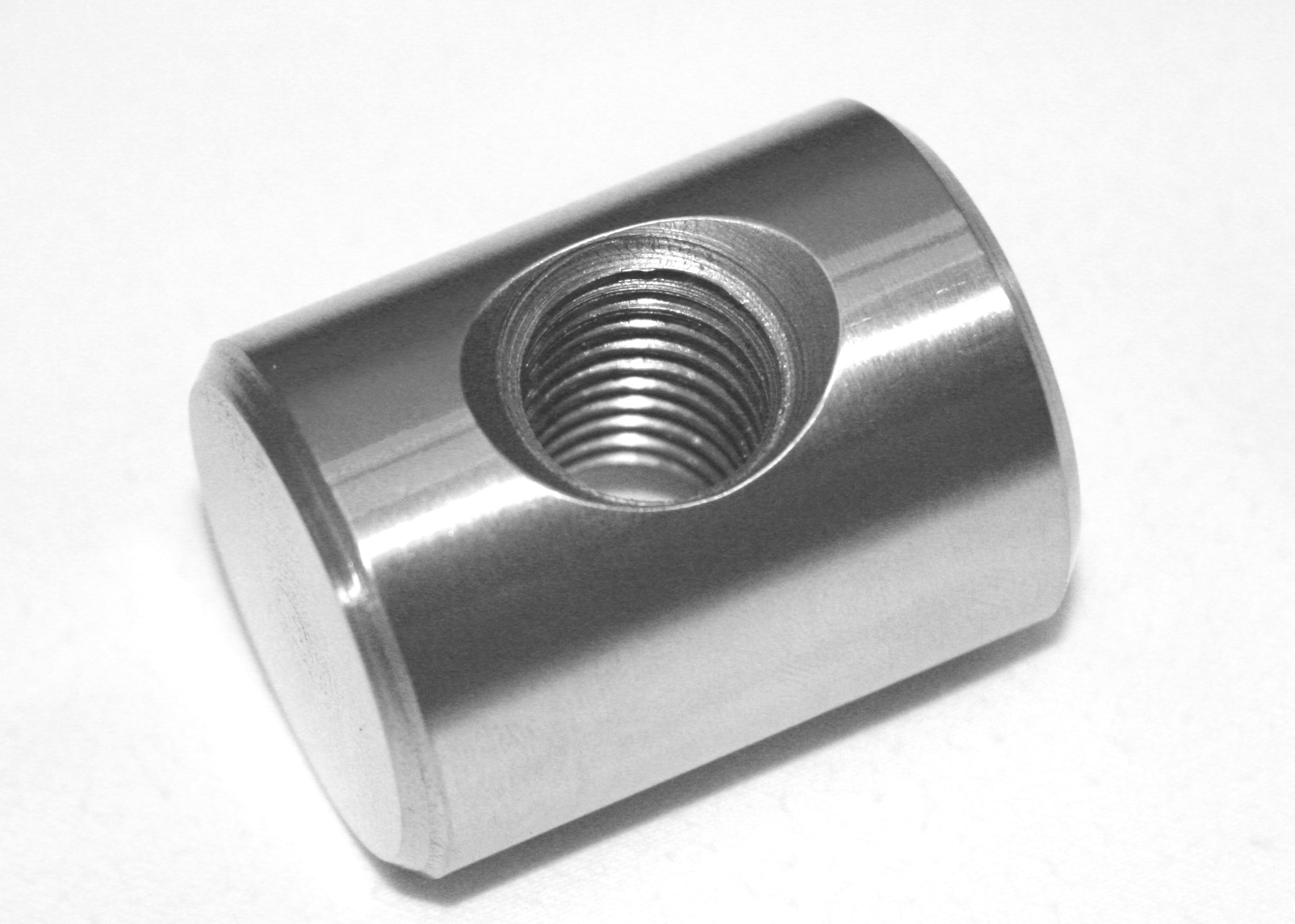

DRAWING OF CROSS BAR

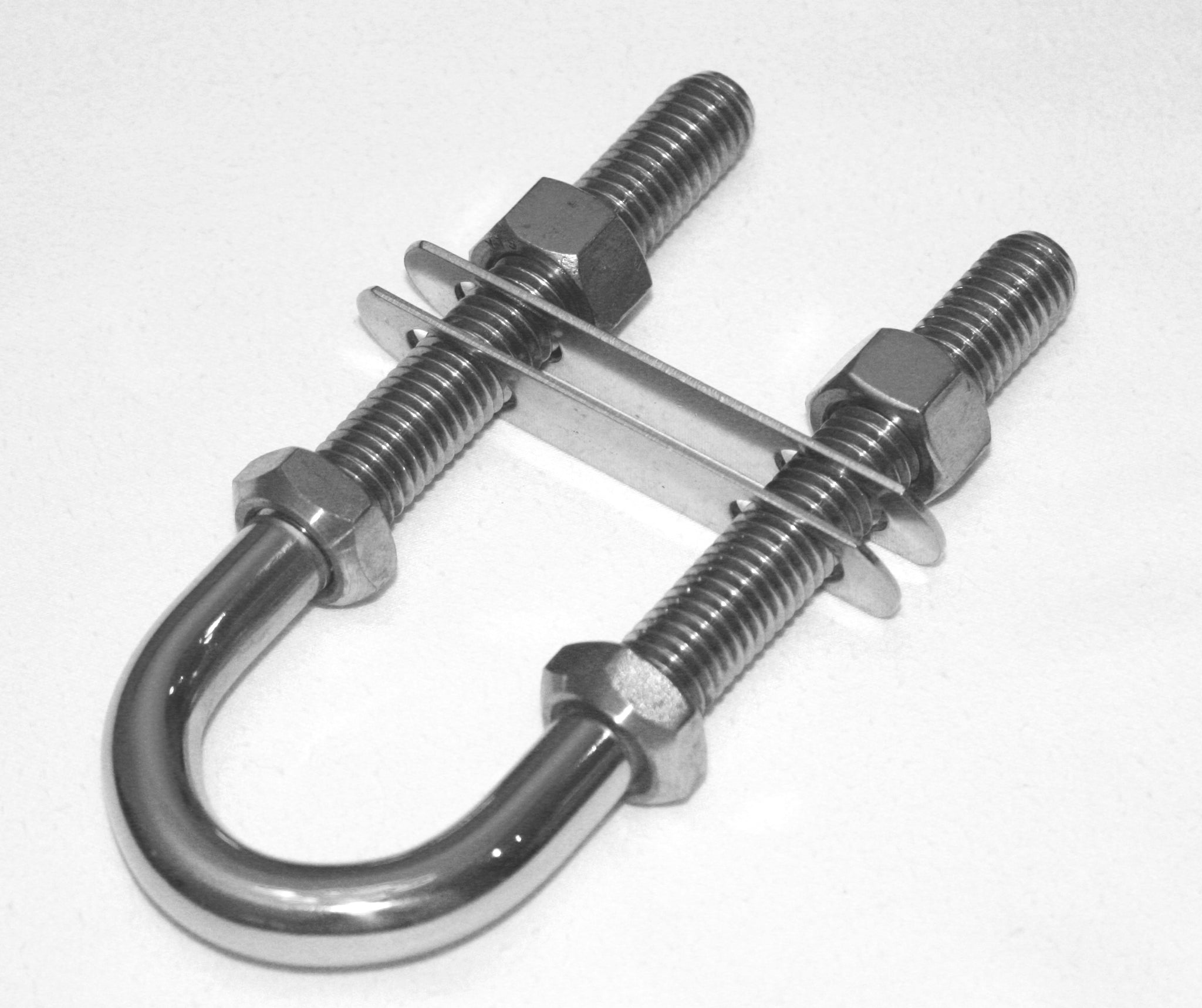

DRAWING OF BOW EYE
