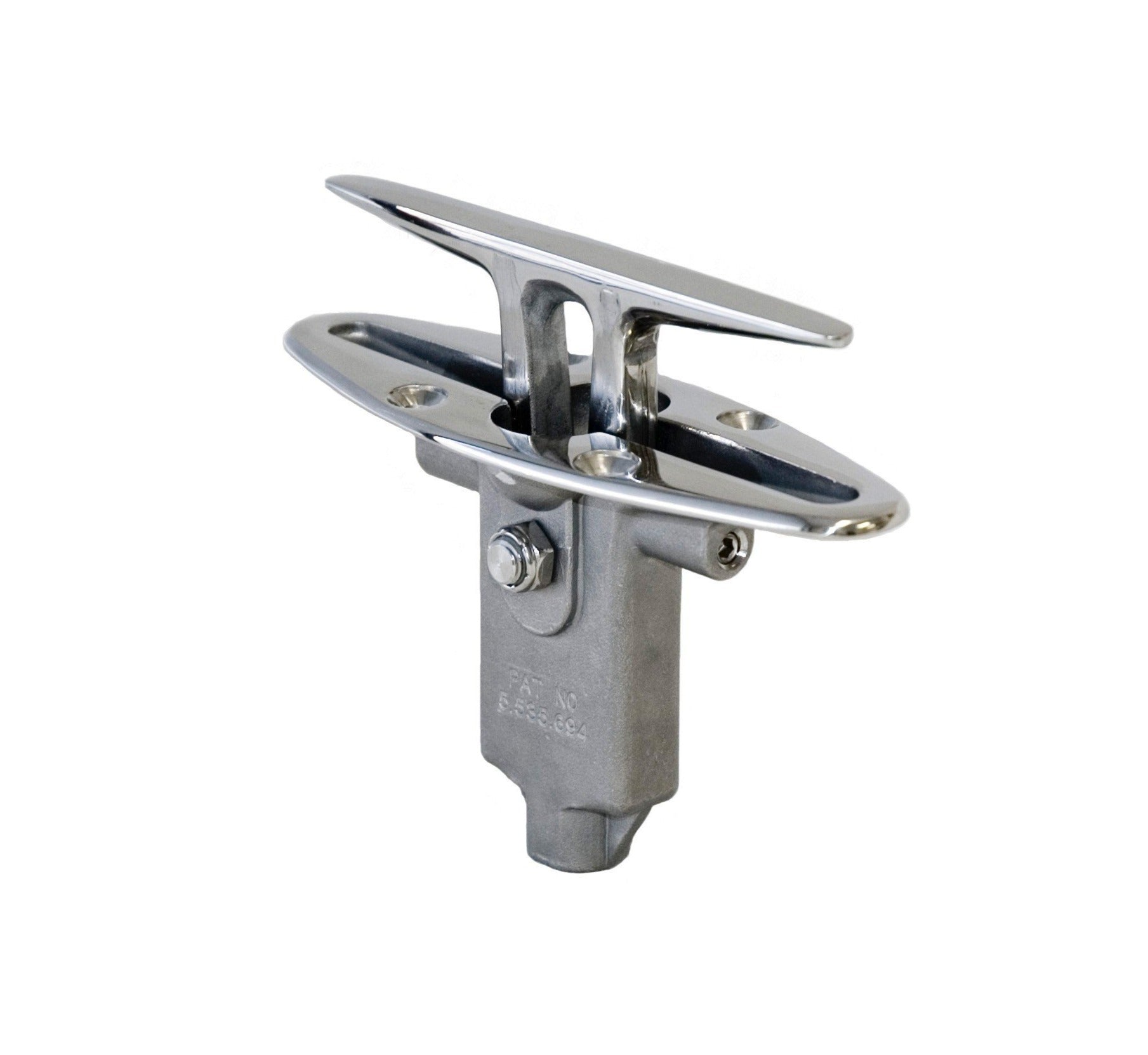

FEATURES

• Sealed base eliminates the need for a waterproofing cup, water can be drained through a fitting at the bottom of the unit.
• Can be converted to a lifting cleat by inserting a connecting rod in the base of the unit and attaching the rod to the bow eye.
• Made of marine grade 316 stainless steel.
• Available in four sizes: 4 1/2", 6", 8" & 10".
• 10" version is available in both through bolt (visible screw holes) and stud-mount (no visible screw holes).

INSTALLATION

• Each cleat is shipped with a backing plate which also serves as the cut-out template..
• Screws are not included
           209-4 requires quantity (4) 3/16" screws
           209-6 requires quantity (4) 1/4" screws
           209-8 requires quantity (4) 1/4" screws
           209-10 requires quantity (4) 5/16" screws

DRAWING OF 4.5" CLEAT
DRAWING OF 6" CLEAT
DRAWING OF 8" CLEAT
DRAWING OF 10" THROUGH-BOLT CLEAT
DRAWING OF 10" STUD MOUNT CLEAT
